Edgewood Terrace

Project Type Commercial
State/Region District of Columbia
Application Type Heat-Welded, Self-Adhered
Year 2018
Square Footage 25,000
Substrate Insulation/Cover Board

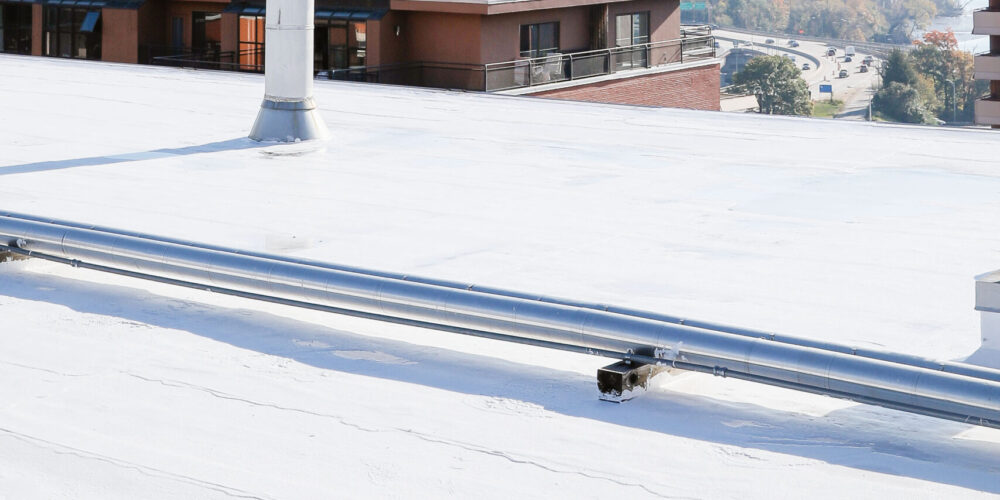

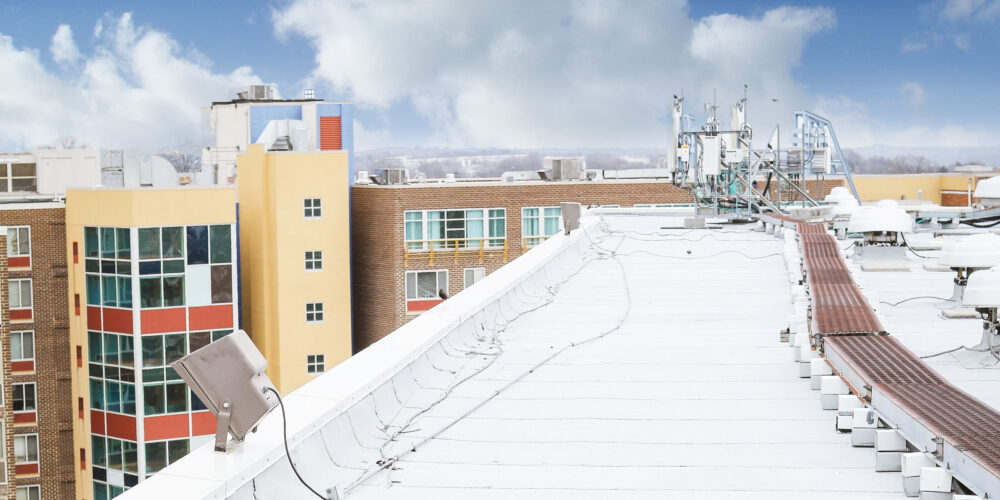

Edgewood Terrace Commons IV, a 258-unit high-rise building in Washington DC, was reroofed with Polyglass’ multi-ply roof system. The 25,000 sq. ft. roof had severe ponding issues and held water after heavy rainfalls and snow storms.

To solve the roof challenge, roofing contractor DC Duct & Sheet Metal LLC tore off the existing system down to the concrete deck and created a tapered design to ensure positive drainage. The tapered insulation was adhered to the deck followed by cover board and Polyglass’ high performing three-ply roof system. Products included two-plies of Polyglass’ Elastoflex SA V self-adhered base sheet and Polyflex® G torch-applied cap sheet in white.

To seal the large number of penetrations, the roofing crew used PolyFlash® 1C,  a one-component, liquid flashing compound that can be used to seal roofing and waterproofing details such as walls, curbs, vents, roof drains, pitch pans and unusually shaped penetrations.

Download Project PDF

Products Used

Polyflex G

Polyflex® G

APP (PLASTOMERIC) GRANULATED CAP SHEET

PolyFlash® 1C

ONE PART FLASHING COMPOUND

Polyglass Elastoflex SA V with sand product image

Elastoflex SA V

SELF-ADHERED SBS ROOF MEMBRANE
