Lynnwood Senior Living

Project Type Commercial
State/Region Washington
Application Type Torch-Applied, Self-Adhered
Year 2017

Project Overview:

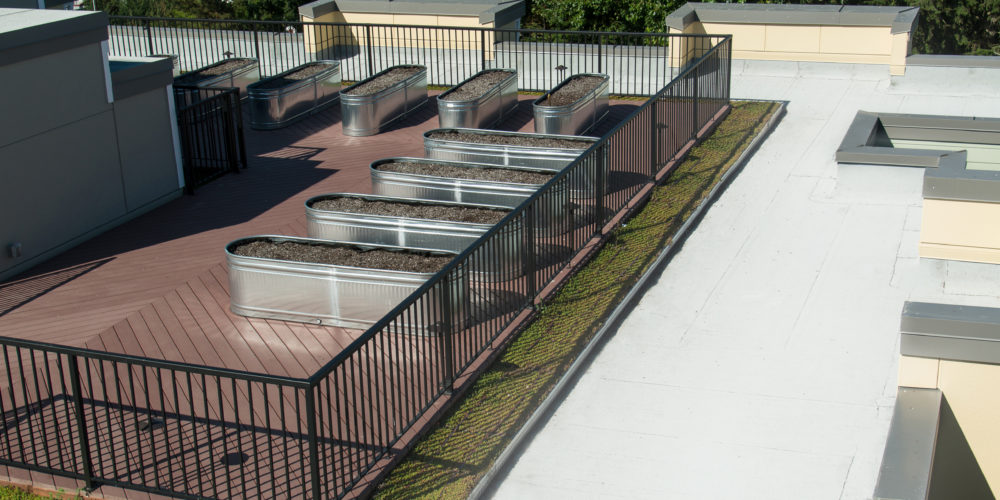

Roofing Contractor 3-D Roof System intalls Polyglass’ Vegetative Roof atop the SHAG (Senior Housing Assistance Group) Lynwood, Wash. property. Backed by a 30-year warranty, the three-ply modified bitumen system chosen provides the critical waterproofing needed for a vegetative roof assembly. At 500-mils thick, the system adds layers of defense for the roof and enables long-term performance. In comparison, singly ply membranes typically have a 60 mils total thickness.

Products include two layers of Polyglass’ Polyflex® Smooth APP (Atactic Polypropylene) modified bitumen membrane for the base and interply sheets. For the final layer, Polyflex® G White APP cap sheet was installed to provide resistance to punctures, tears, abrasion, foot traffic and the elements. Elastoflex® SA V—a high performing self-adhered membrane featuring Polyglass’ ADESO® Technology was used for the flashing details.

Challenges:

3-D Roof Systems began the roof installation in October 2016, which according to the Seattle Times had record breaking rainfall.  But 3-D Roof Systems was prepared for the inclement weather. The team used a system of inflatable tenting adapted for use on the roof to work around the weather.  As they completed sections of the roof, the tent was moved to new areas that needed to be worked on.

Read more!



Products Used

Polyflex

APP Membranes

Polyflex G

APP Membranes

Elastoflex SA V

ADESO Self-Adhered Technology
